Chapter 01

Spraying System

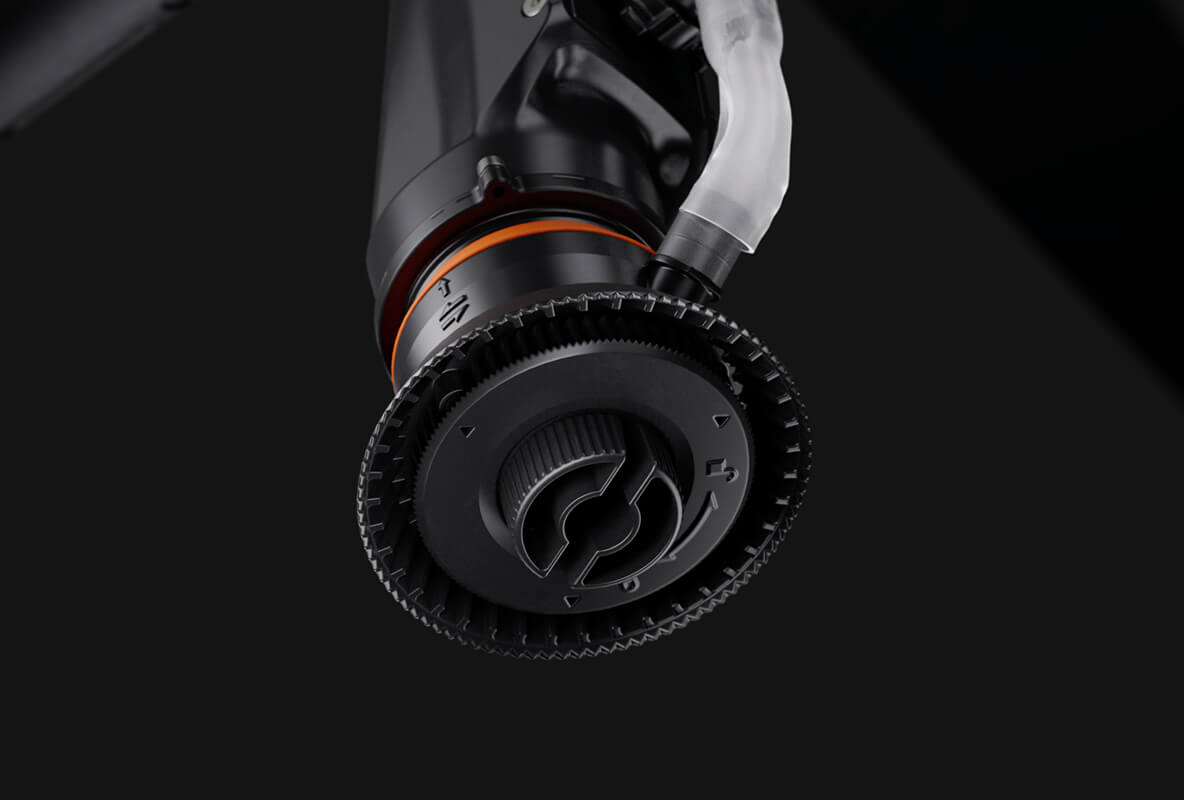

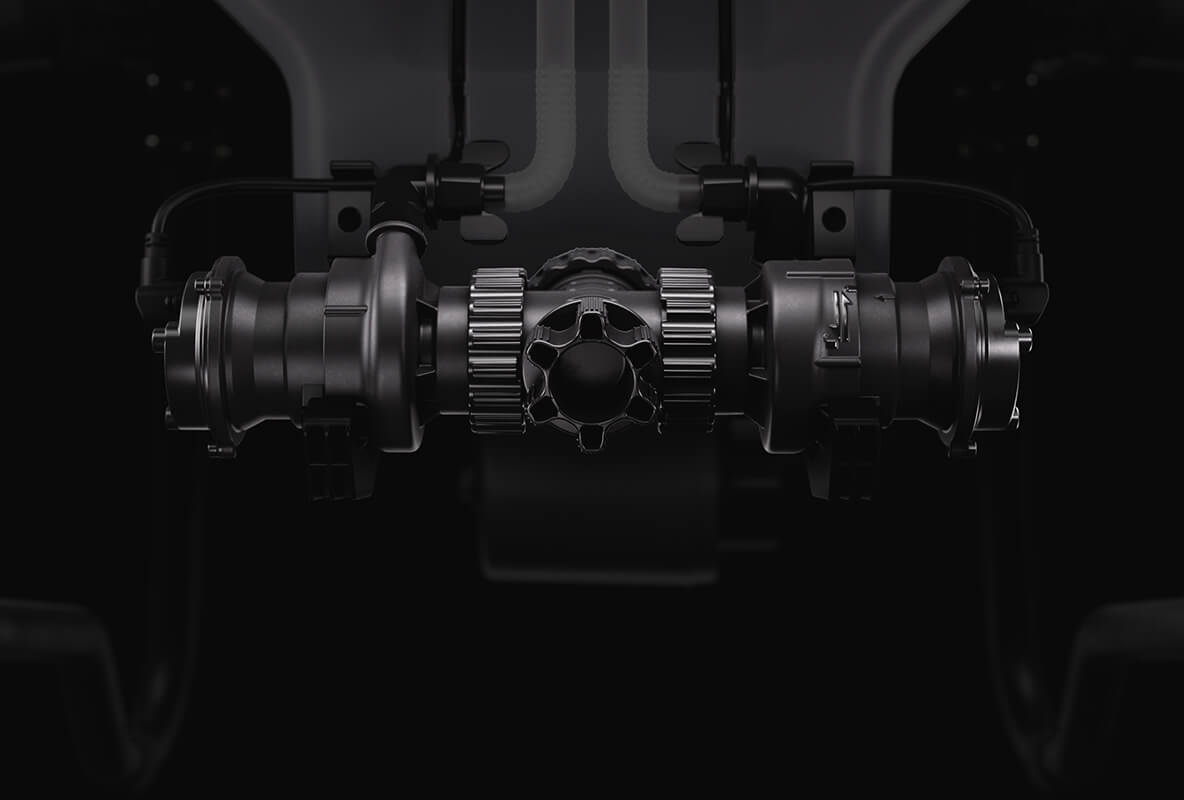

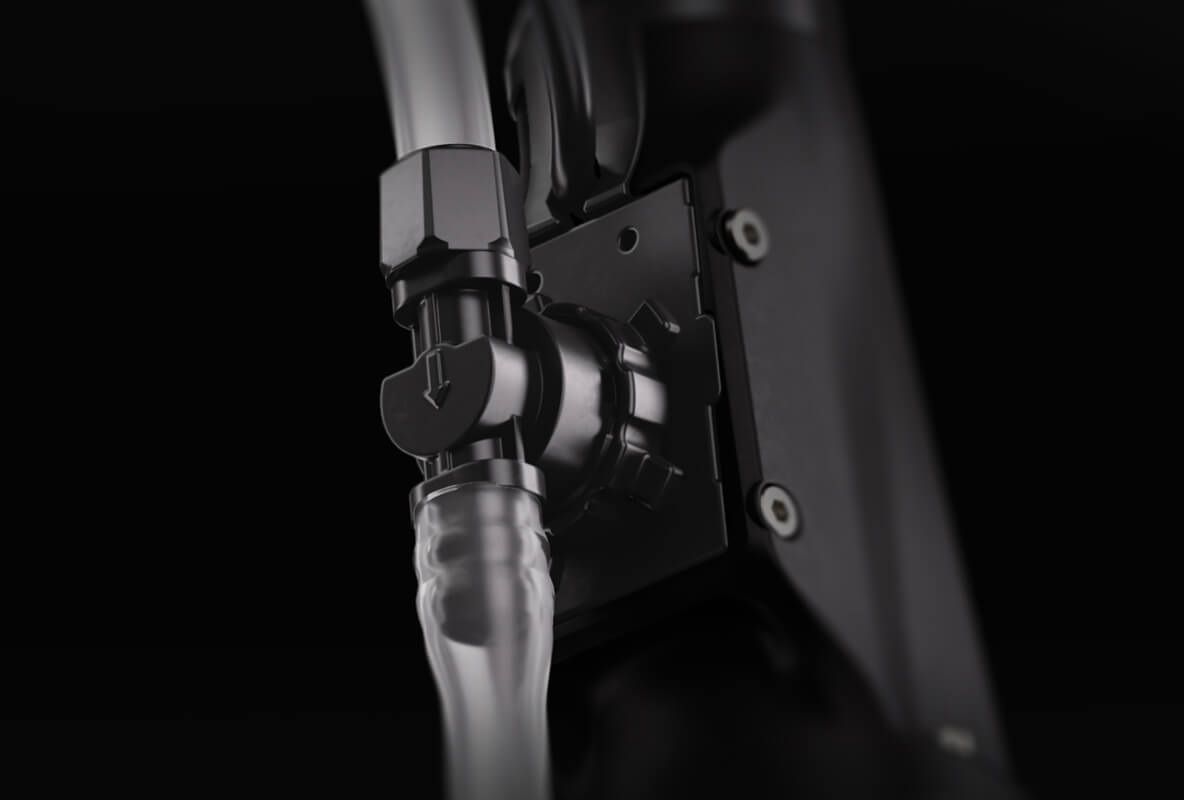

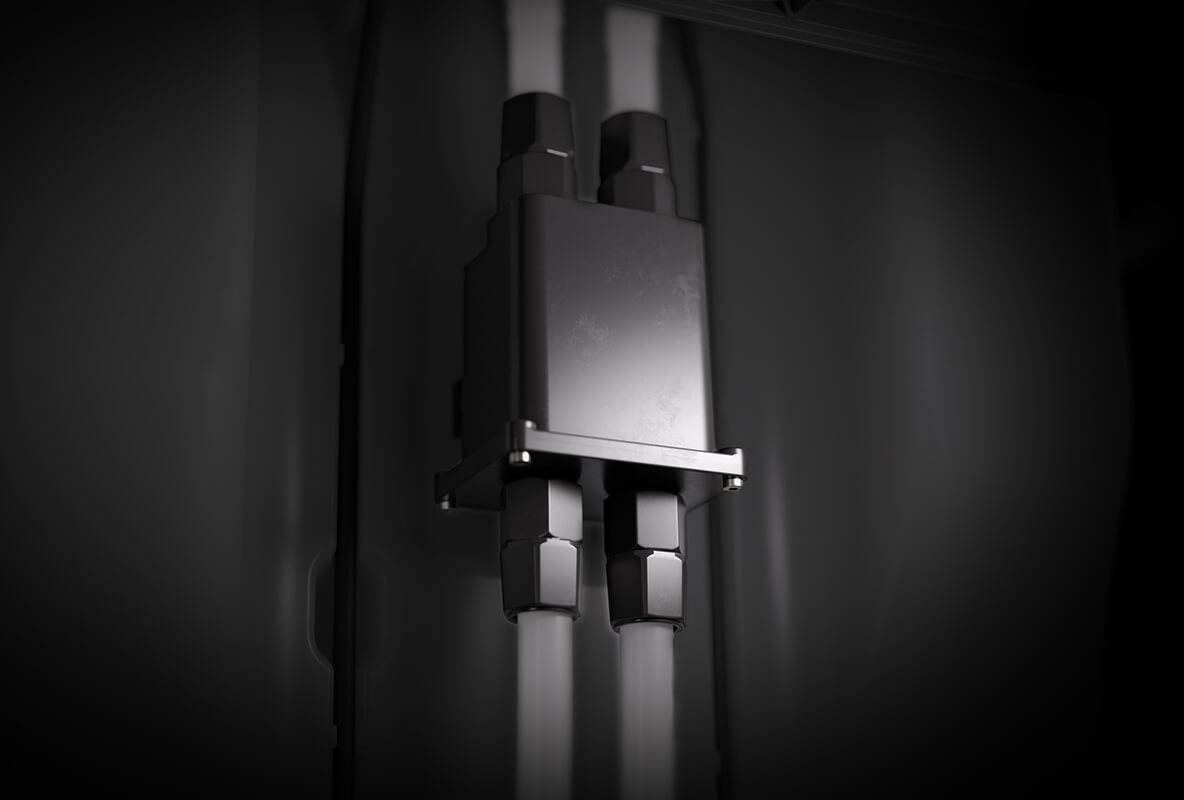

The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.

Field Operations Orchard Operations 20 % Increase in Operation Efficiency[7] 30 L /min High Flow Rate 20 m/s Maximum Flight Speed[6] 4 -11 m Effective Spray Width[9] Field Operations Orchard Operations 20 % Increase in Operation Efficiency[7] 30 L /min High Flow Rate 20 m/s Maximum Flight Speed[6] 4 -11 m Effective Spray Width[9] 20 % Increase in Operation Efficiency[7] Increase in Operation Efficiency[7]

Chapter 02

Spreading System

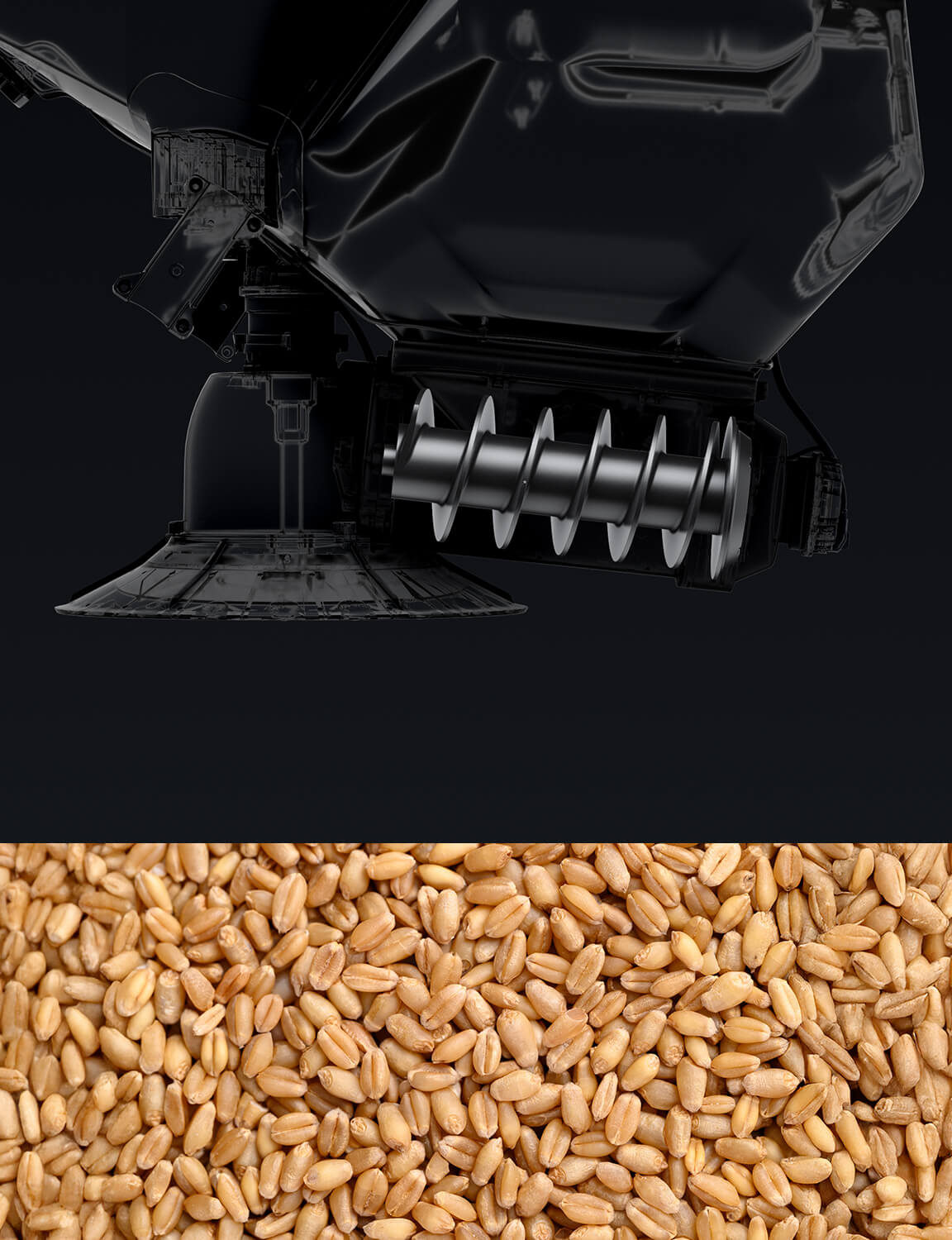

The T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate [7] for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.

100 L(70 kg) Large Capacity Spreading Tank[10] 400 kg/min High Flow Rate[4] 10 m Effective Spreading Width[11] 0.5-10 mm Granule Size Range[12] 100 L(70 kg) Large Capacity Spreading Tank[10] Large Capacity Spreading Tank[10] 10 m Effective Spreading Width[11] 0.5-10 mm Granule Size Range[12]

Chapter 03

Safety System[2]

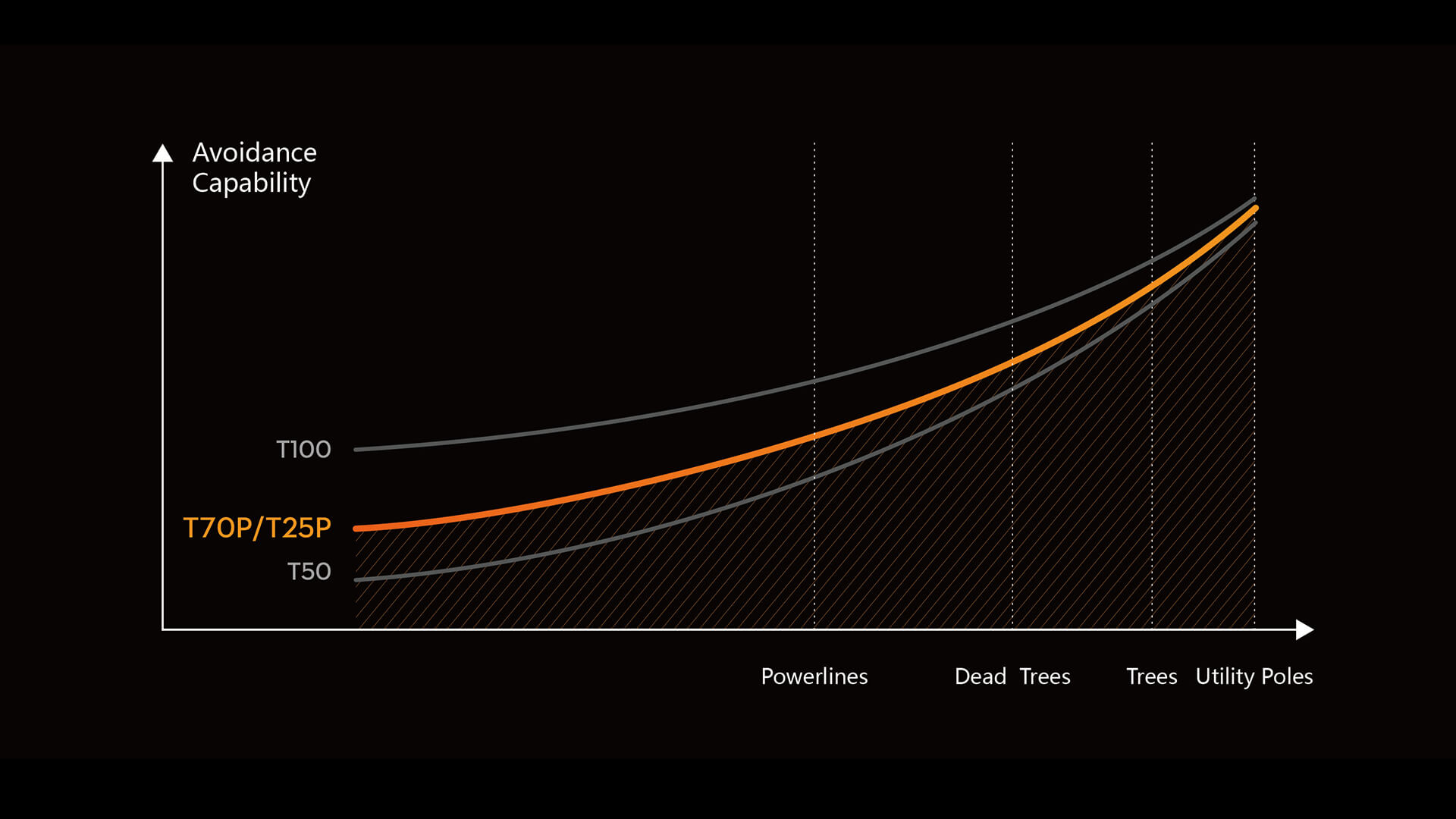

The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

Millimeter-Wave Radar The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range. The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range. Tri-Vision System[13] Two black-and-white fisheye cameras an

Chapter 04

Lift System

The T70P transforms into a transport solution with a lifting capacity of 65 kg[5] it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.

Solar Panels Fruits Building Materials Saplings Automatic Balance Control Real-Time Weighing Marking Loading and Unloading Points by Mobile Automatic Flight Utilizing a triaxial force sensor, the drone can automatically adjust its posture during flight to eliminate swinging, ensuring safer operations. A triaxial force sensor provides real-time weight monitoring to prevent overloading and ensure operational safety. Operators can use their mobile phones, in conjunction with th

Chapter 05

Propulsion System

The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.

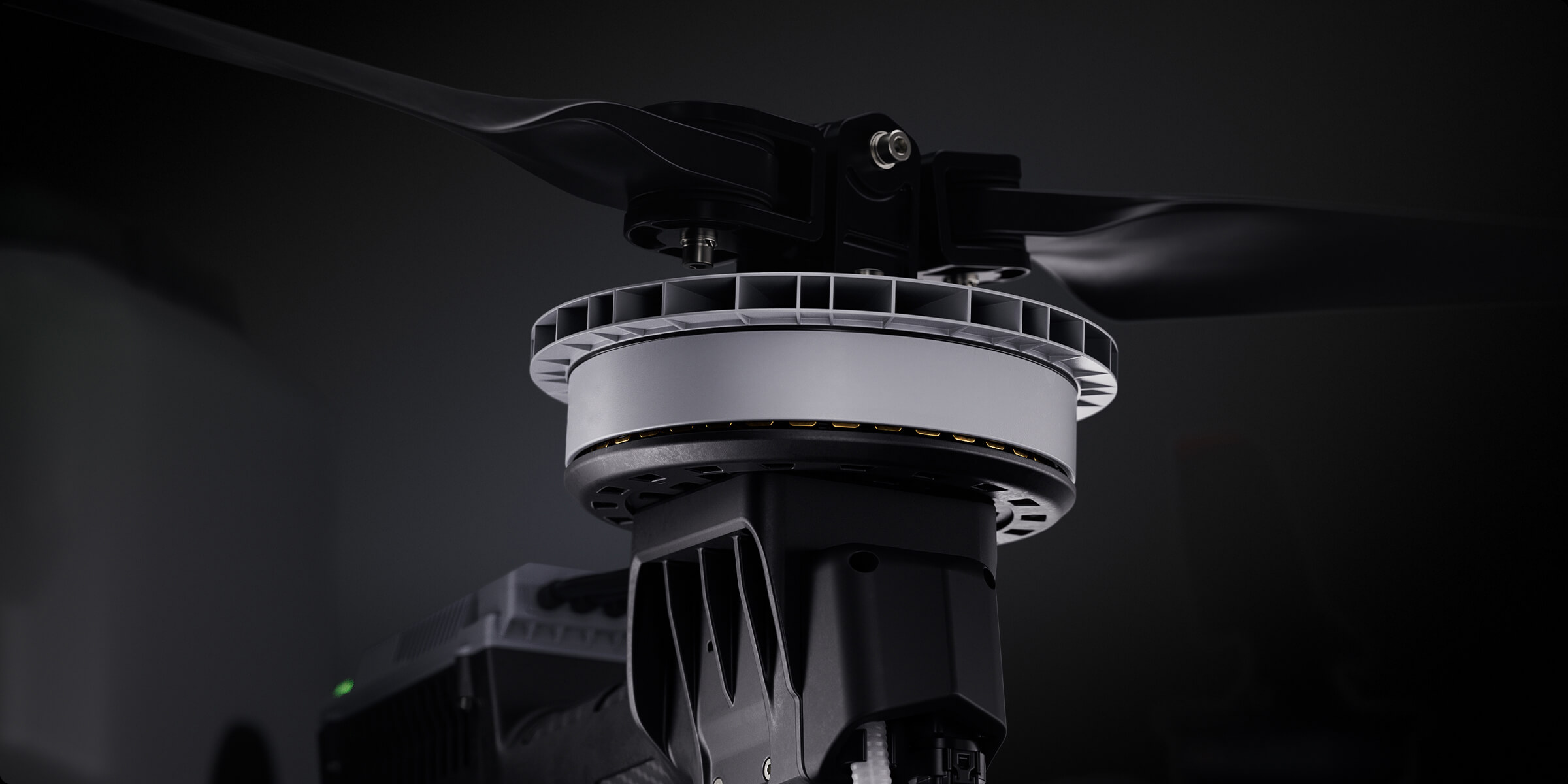

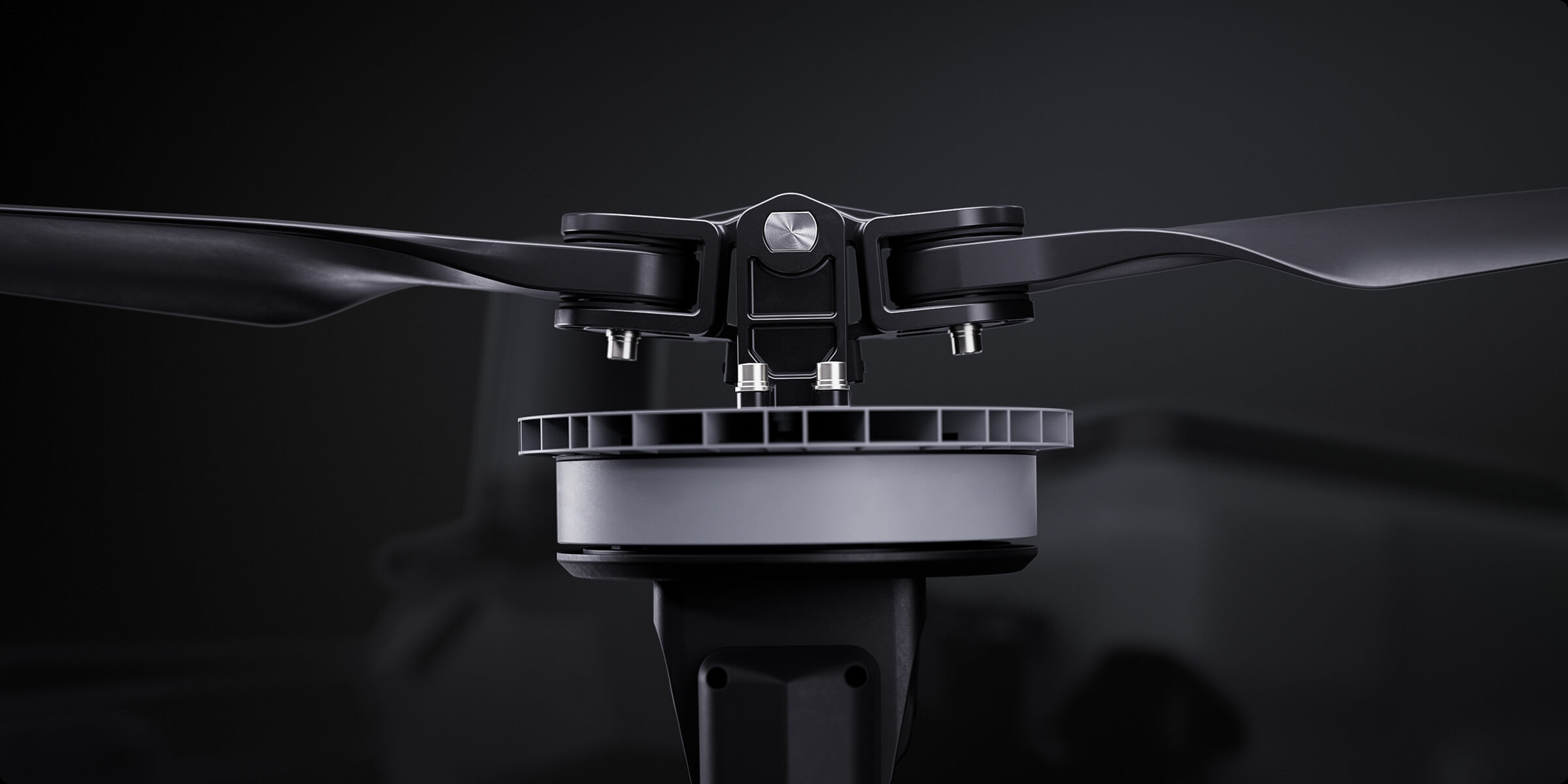

20 m/s Max Speed[6] 18 % Enhanced Efficiency[7] 30 % Lower Power, Higher Load[15] 30 % Lower Power, Higher Load[15] 62-Inch Carbon Fiber Propellers Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 15%[7]. Motor Optimization With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%[7]. Swing Propellers C

Chapter 06

DJI RC Plus

DJI RC Plus features a 7-inch high-brightness screen that is 16%[7] brighter for clear visibility under sunlight. Both internal and external battery life are extended by 30 minutes[7]. New backlit buttons enhance nighttime operation, and customizable physical buttons offer flexible control.

Get Started With Ease Simply complete the field planning, and operate with one click, without the need for manual intervention. Simply complete the field planning, and operate with one click, without the need for manual intervention. Step 1: Easy Field Planning Step 1: Easy Field Planning Choose from multipl planning methods. Once the field is planed, the flight path is automatically generated. Choose from multipl planning methods. Once the field is planed, the flight path

Chapter 07

Transmission System

The upgraded O4 video transmission algorithm ensures constant signal availabilitys. O4 Relay it's designed to excel in challenging signal conditions, delivering seamless and efficient operations.

O4 Transmission An upgraded transmission algorithm enhances the range while maintaining smooth and stable visuals for consistent performance. O4 Transmission RTK High-Precision Positioning Module D-RTK 3 AG (Optional) O4 Relay (Optional) An upgraded transmission algorithm enhances the range while maintaining smooth and stable visuals for consistent performance. RTK High-Precision Positioning ModuleUse in conjunction with the remote controller and smartphone for precise loca

Chapter 08

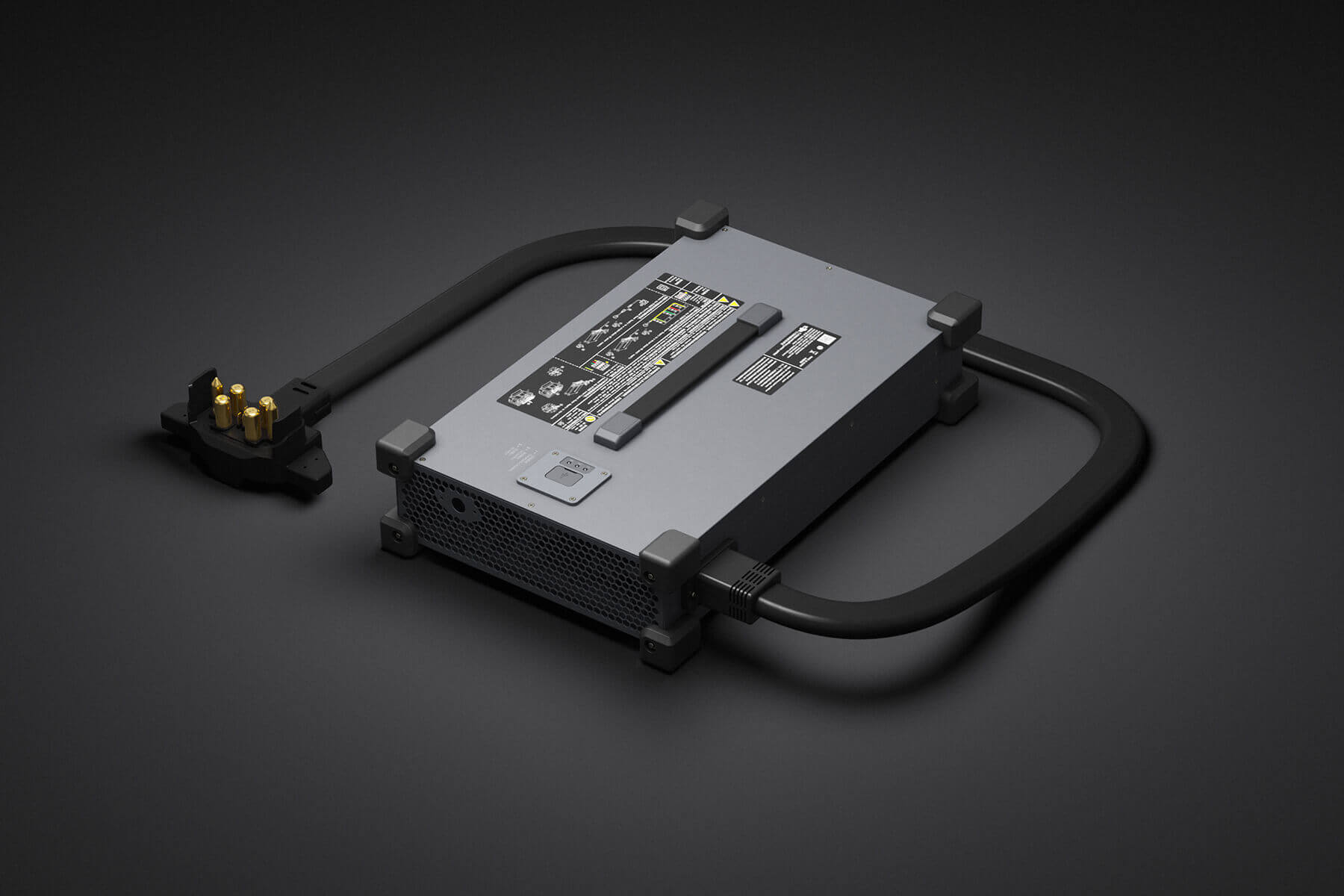

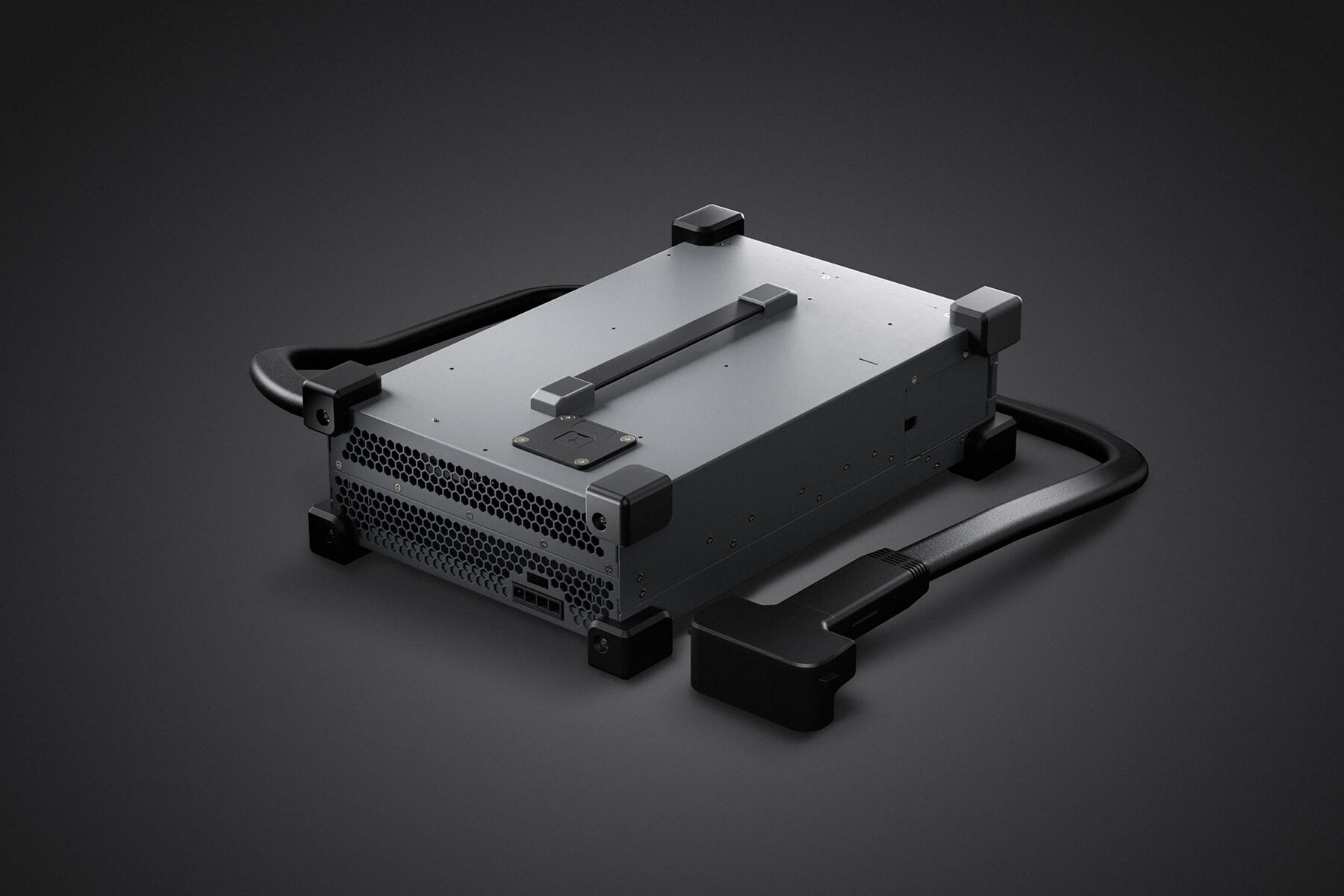

Power System

The T70P achieves significant power savings thanks to enhanced energy efficiency, effectively reducing operational costs. It supports two smart flight batteries, catering to varying operational needs. （It varies between countries.）

DB1580 Intelligent Flight Battery 30 Ah 1500 charge cycles under warranty[19] 500 A high-power connector Weight: 11.7 kg Ergonomic handle DB2160 Intelligent Flight Battery 41 Ah 1500 charge cycles under warranty[19] 500 A high-power connector Weight: 14.7 kg Ergonomic handle 30 Ah 1500 charge cycles under warranty[19] 500 A high-power connector Weight: 11.7 kg Ergonomic handle DB2160 Intelligent Flight Battery 41 Ah 1500 charge cycles under warranty[19] 500 A high-power con

Chapter 09

Which Package Suits You Best?

DJI Agras T100 DJI Agras T70P DJI Agras T25P

Spraying Payload: 100 L [1] Flow Rate: 30 L/min (Standard 2 sprinklers) Flow Rate: 40 L/min (Optional 4 sprinklers) Dual Atomization Centrifugal Sprinklers: 50-500 μm[8] Optional Water-Cooled Mist Sprinklers: 50-500 μm[23] Spraying Payload: 70 L [1] Flow Rate: 30 L/min (Standard 2 sprinklers) Flow Rate: 40 L/min (Optional 4 sprinklers) Dual Atomization Centrifugal Sprinklers: 50-500 μm[8] Optional Water-Cooled Mist Sprinklers: 50-500 μm[23] Recommended Spray Width: 7 m[9] Spr
